LANTIME M500 - Time and Frequency Synchronization in Rail Mount Chassis

Key Features:

• Optimized space usage
• Synchronization of NTP and SNTP compatible clients
• Web-based status and configuration interface, and console-based graphical configuration utility
• Hot Plug
• Arbitrary combinations of modules
• The M500 time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
• Up to 2 PTP (IEEE 1588-2008) modules
• Up to 8 additional LAN ports

The full-featured DIN rail mount package has one power supply slot, a clock module slot, a CPU slot and two slots for additional input and output modules. Both wide range AC and a 20-72 VDC power supply model are available.

Scalable NTP Time Server System
All modules are hot-plug capable and the modules can be configured via the central web interface (from the CPU module). Almost infinite number of combinations of input and output modules are available to meet almost any synchronization task. Because of simple extension by upgrading the system with new modules the scalability of the M500 system is ensured.

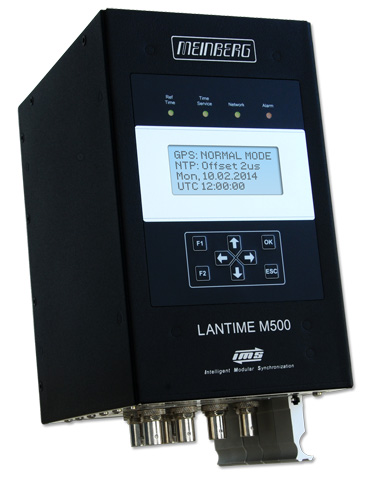

Front Panel
The front panel of LANTIME M500 integrates the familiar LC-Display with 4x16 characters and the well known LANTIME menu panel with 4 directional and 4 function buttons. This allows for a simple and fast on-site configuration of the main parameters. Hundreds of configuration options for the LANTIME CPU and the IMS input and output modules can be changed using the powerful web interface.
