M3000 - Modular Time Server in 3U Rackmount Chassis

The IMS LANTIME M3000 is a field upgradeable and extremely flexible system that covers your synchronisation needs – today and in the future.
Get a Quote!

Key Features:

  • Optimized space usage
  • Synchronization of NTP and SNTP compatible clients
  • Web-based status and configuration interface, and console-based graphical configuration utility
  • IMS - Intelligent Modular System platform
  • Redundant power and receiver option (eg GPS / GLONASS / Galileo / Beidou combination)
  • Hot Plug
  • Arbitrary combinations of modules
  • Replacement or retrofitting of an ACM module (Active Cooling Module) possible during operation
  • LANTIME time servers are available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
  • Up to 10 PTP (IEEE 1588-2008) modules
  • Up to 24 additional LAN ports

Versatile and modular time and frequency synchronisation platform in 3U rackmount chassis.

M3000 S-Chassis

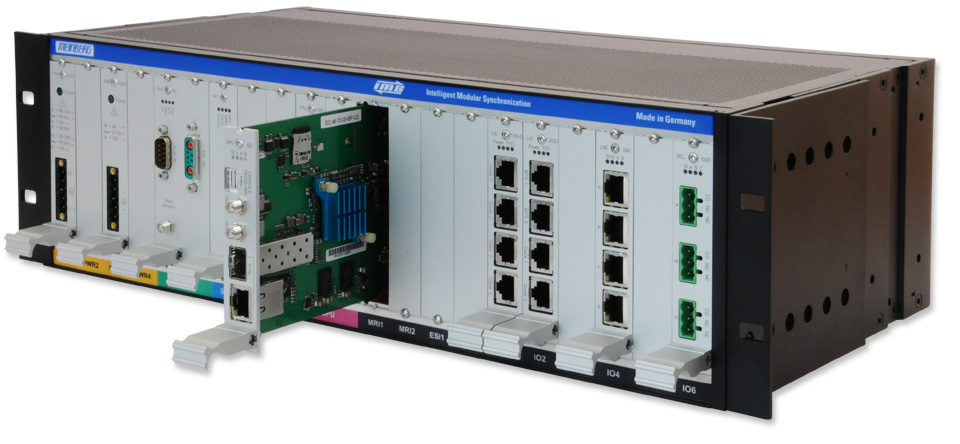

Figure: easy retrofitting of an M3000 System with HPS100 IEEE-1588 PTP hardware timestamping module.

The M3000 chassis has four power supply slots, two clock module slots, a seamless switchover card slot, a CPU slot and ten slots for additional input and output modules. Adding a second clock module and the required RSC switch module will turn the M3000 into a fully redundant solution. Up to four power supplies can be installed, offering protection against the failure of one or more power sources or power supply failures. Both wide range AC and an 18-72VDC power supply model can be mixed and matched as required.

The possibility to add input and output modules as well as specialized communication cards for NTP and PTP/IEEE1588 network synchronization and remote management ensures that a LANTIME M3000 will fulfil all your synchronization requirements and the scalability and flexibility of the IMS platform concept enables it to cope with the changing demands of your critical applications.

M3000 Broadcast Configuration

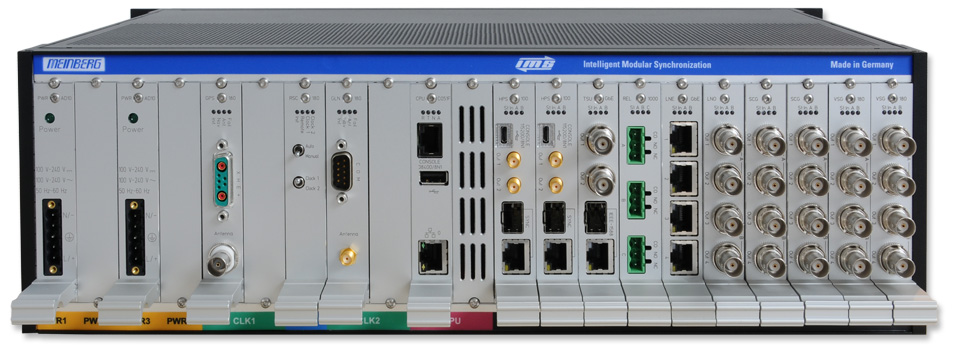

Figure: the M3000 with "Broadcast Configuration" - HPS100 PTP and NTP hardware timestamping module, VSG Video Sync Generator and SCG Studio Clock Generator.
